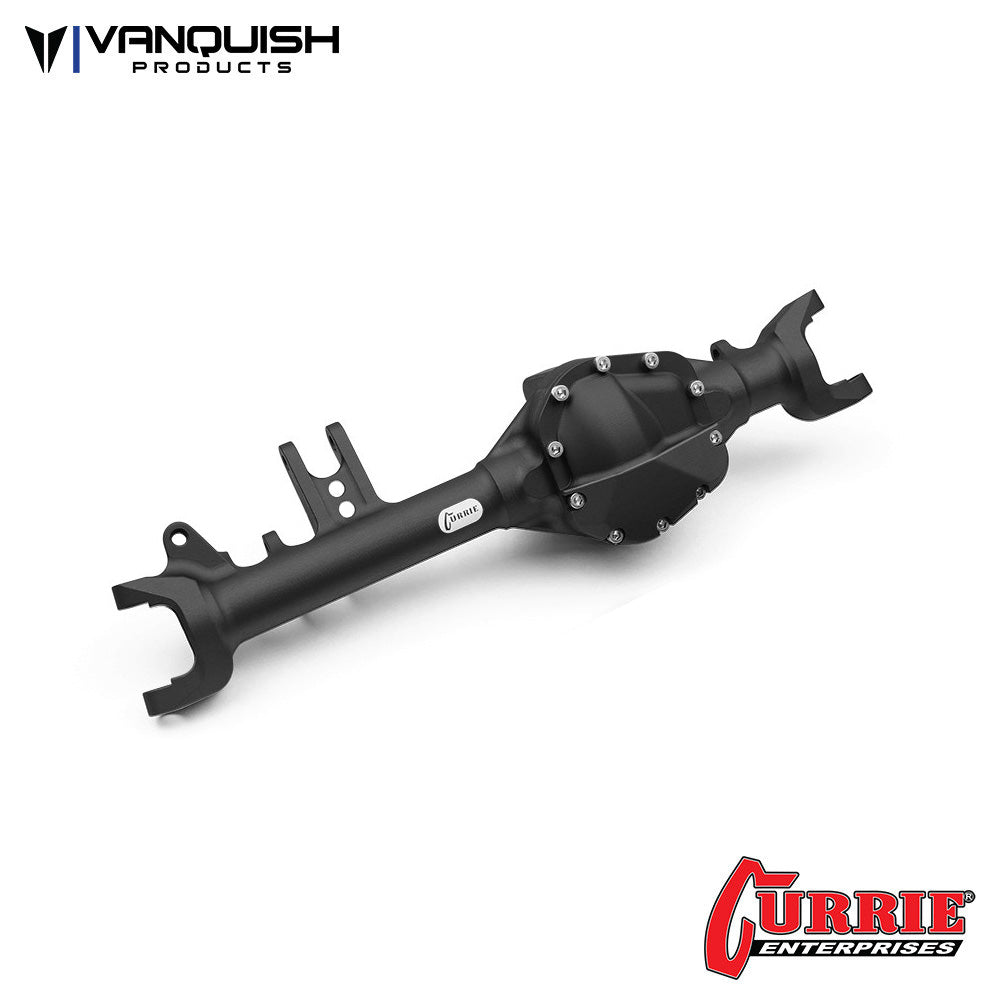

Currie VS4-10 D44 Front Axle Black Anodized

Currie D44 Offset front axle for VS4-10 based vehicles

The licensed Currie Enterprises RockJock 44 style front axle features an offset front differential housing and uses chromoly VDI universal axle shafts and patent pending one-piece bearing retainers to create an incredibly scale and durable front axle assembly. Integrated inner c-hubs create an unmatched scale look and are strengthened to provide the most durable axle housing possible, with easily replaceable chromoly threaded inserts for the knuckle kingpin screws. D44 axles use Vanquish Products AR44 gear sets and spools.

Recommended use with the following:

• Vanquish VS4-10 Chassis Kit. PN VPS10130*
• Incision 90mm shocks.  PN IRC00210
• Vanquish Rod Ends and Pivot Balls (.280" width pivot balls)**
• Vanquish Products 6-Hole AR44 Gear set. PN VPS08330
• Vanquish Products 6-hole AR44 Spool. VPS08070
• Use in combination with Incision IRC00070 or IRC00071***

Features:

• Fully licensed by Currie Enterprises
• Chromoly offset VDI universal axle shafts
• Comes with One Piece Bearing Retainers (Patent Pending)
• Integrated C-hub design allows for a more scale appearance
• Threaded Chromoly Steel C-hub Insert provides stronger threads that are also replaceable
• Double shear shock mounts
• Integrated Panhard mount
• Upper link mount built into the housing for added scale appearance and strength
• Includes Stainless Steel front upper link and rod ends

Includes the following:

• 1pc Currie Front Housing
• 2pc VDI universal axle shafts (short and long side)  PN: IRC00181
• 2pcs Bearing Retainers
• 1pc Currie Diff Cover
• 4pc Threaded Inserts
• 1pc Stainless Upper Link
• 2pc Vanquish Rod Ends and Pivot Balls
• Required hardware
• Instructions

Does not include the following:

• hexes, hex pins, bearings, kingpin, knuckles, ring and pinion or locker

Required Bearings List:

• 2pc 7x14x3.5
• 1pc 5x14x5
• 3pc 5x11x4

*These axles are for use with a Vanquish Products VS4-10 Chassis. Clearances of the offset pumpkin require additional clearances compared to centered housings and will not function properly under many other chassis designs.

**Not for use with Vanquish Products Brass Pivot Balls (.300" width)

***Requires use of included stainless steel link for front upper link

****Due to the nature of the AR44 gear design, proper shimming of the pinion gear may be required for optimal results.
